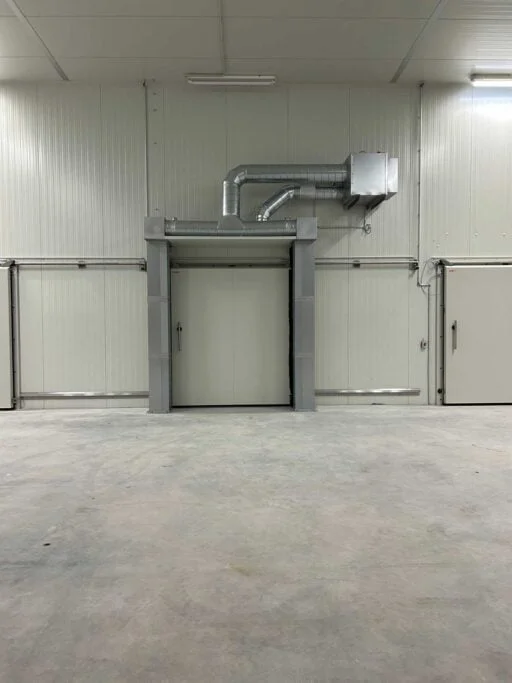

Masterveil PowerStream DSB air curtain with an electric heater installed in front of a freezer opening to prevent warm and humid air from entering the freezer room.

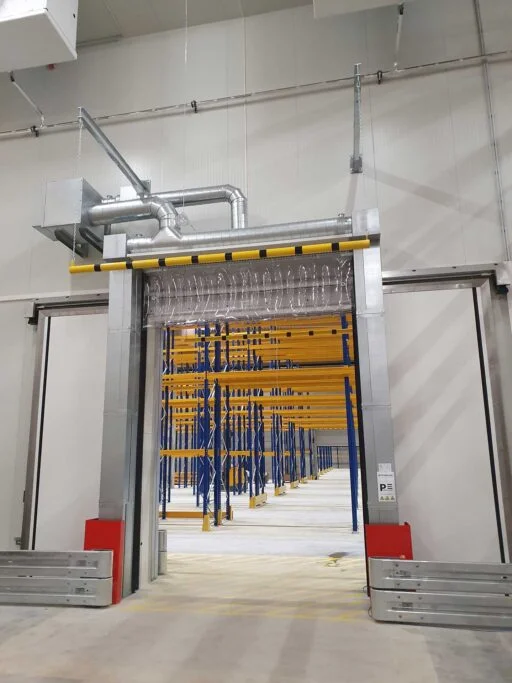

Masterveil PowerStream DSB air curtain installed in a newly constructed energy-efficient freezer warehouse.

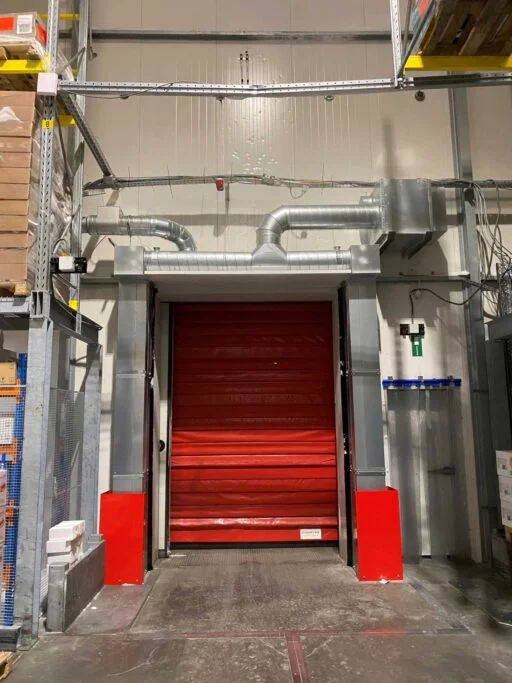

Masterveil PowerStream DSB air curtain with red collision protection

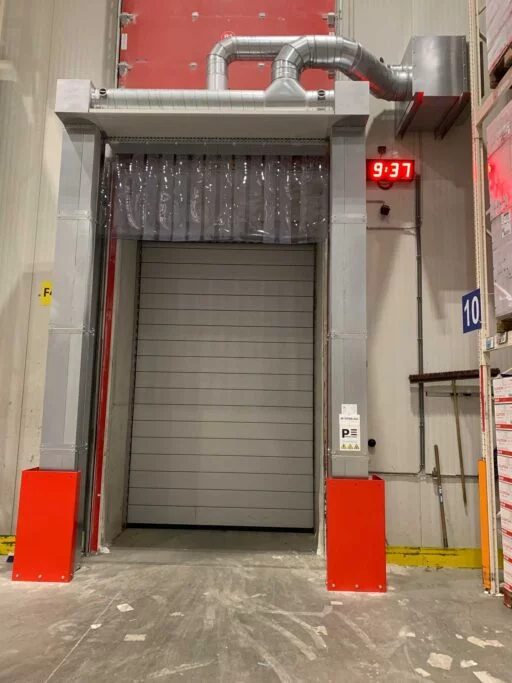

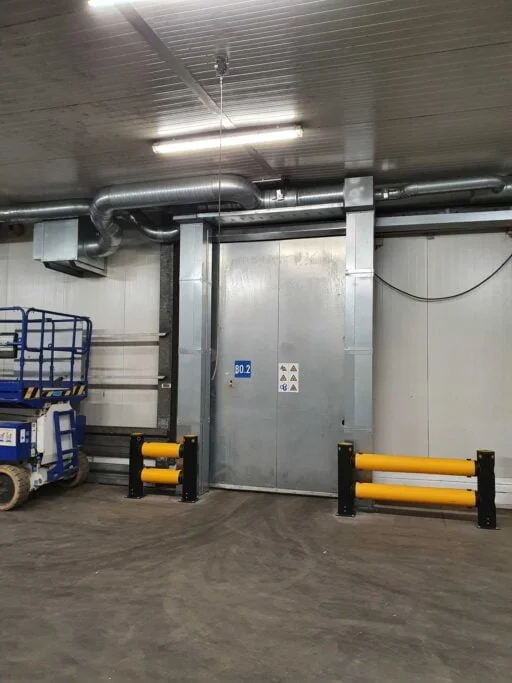

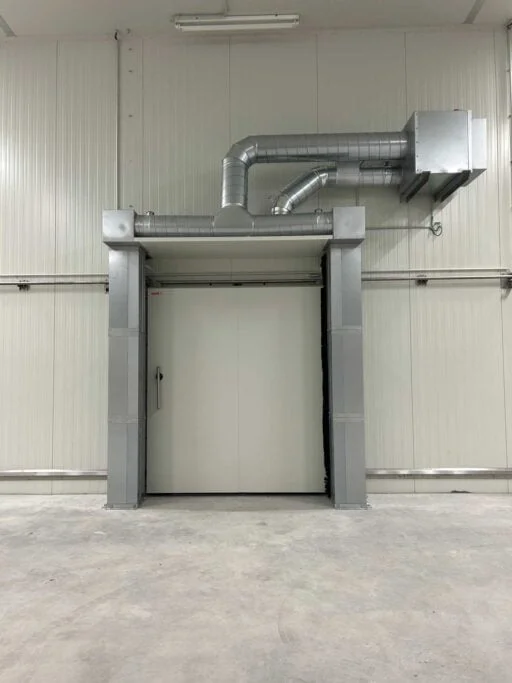

Masterveil PowerStream DSB air curtain in front of a closed freezer door.

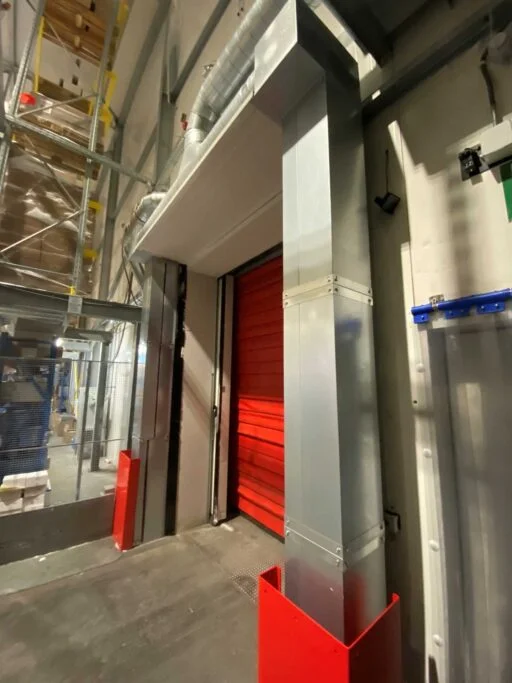

A close-up of the Masterveil PowerStream DSB air curtain in front of a freezer door.

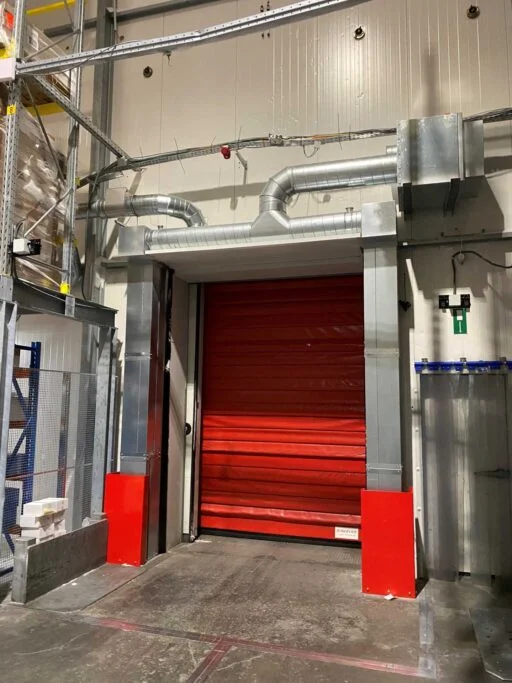

A Masterveil PowerStream DSB air curtain with red collision protection installed in front of a red freezer door.

Get the highest efficiency and lowest energy-consumption with this air curtain for freezers

This unique high-pressure air curtain system was specially developed for use for doors between large freezers in combi with big conditioned front rooms. Here, the function of temperature and humidity separation is split into two individual functions. The temperature separation is ensured with a predefined outblow angle of the separation air jet against the natural flow direction. Another, patented conditioned air jet is applied to the separation air jet and protects the deep-freeze area from penetrating humidity. Since this is done with a high degree of efficiency, we refer to it as an insulation air layer.

Product information

Main features

Tailormade modular design
For logistic freezer environments with changeable components to keep costs to the absolute minimum.
Specially designed for different type of situations and areas with different levels of humidity load.
Also available in hygenic stainless steel.

Powerstream®

The Powerstream® system consists of an external fan and two vertical discharge modules. As standard, this basic system is installed on the freezer side. In opposite to the typical Masterveil approach, the tailormade length is reached by combining standard modules. The blow-out modules are positioned to the left and right of the door.

More features

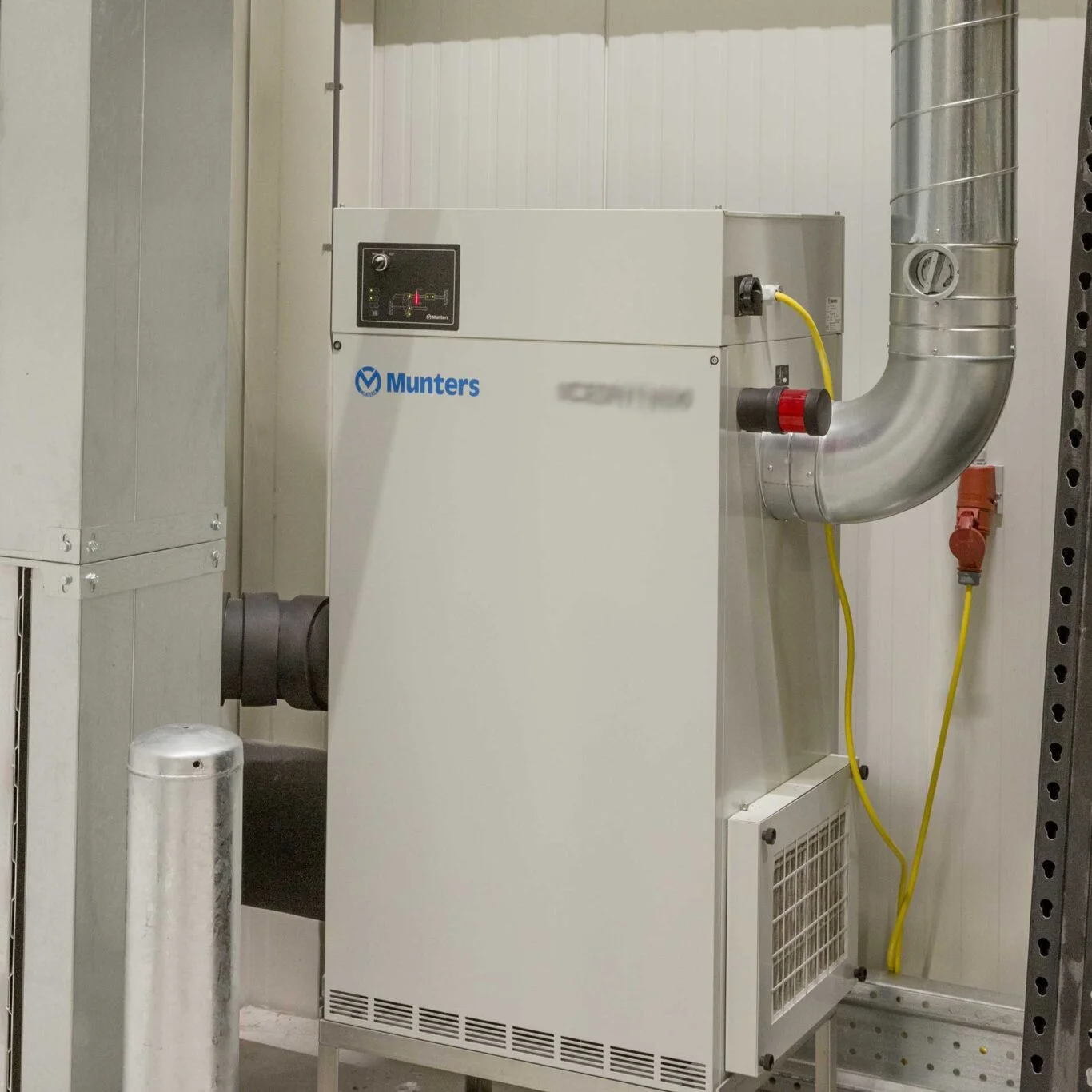

Depending on requirements, the insulation air layer is conditioned with an electric heating coil, a glycol coil or an active dehumidifier.
Due to the patented separation of functions into separation and insulating air jet, the energy requirement is reduced to a minimum.
The entire system is controlled via a control cabinet and can be connected directly to the building management system.
The fans are based on EC technology in accordance with the latest ErP regulations.
They have an adjustable operating point, so that a zero point is demonstrated in each case as proof of correct function and screening.
The specially developed nozzles have a very smooth surface to avoid the smallest turbulence in the air jet.
