Masterveils Terminal System – The Obvious Choice

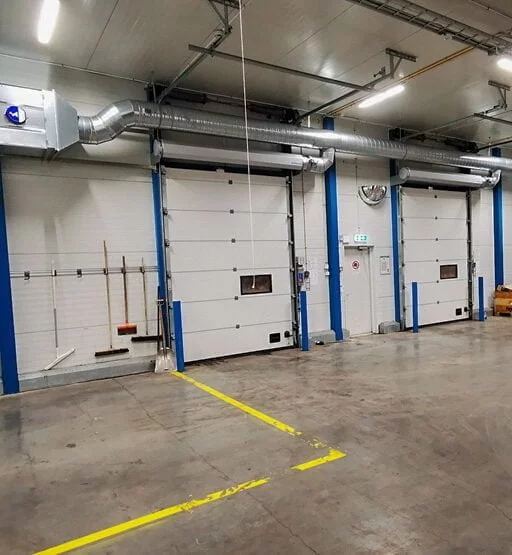

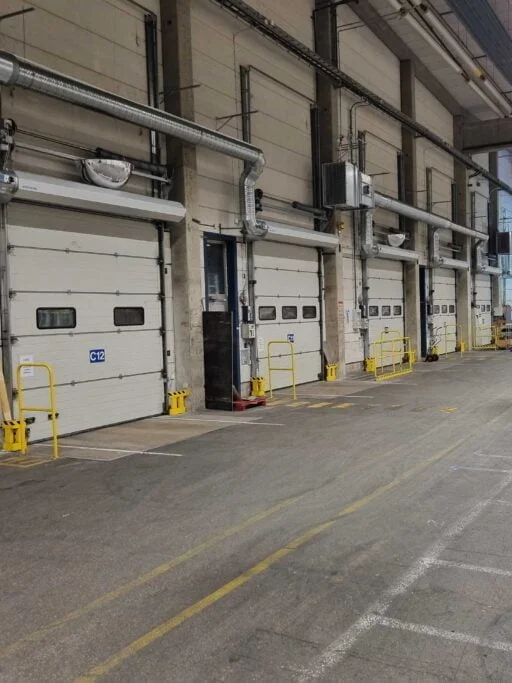

Terminal system minimizes installation, and material costs by requiring only one fan unit for up to 6 doors. This saves you both time and money without compromising on performance.
With a user-friendly control unit and advanced sensor controls, the Terminal System can precisely regulate airflow to each door at the right time, ensuring optimal performance and energy efficiency. Our control units also offer intuitive operation status and settings management for ease of use.
Our system also offers customizable heating options. Depending on your needs, you can choose between water batteries, electric batteries, or no heat at all, providing you with a flexible solution that fits your operation perfectly.
Another key feature is our unique Airstop air curtains. These reduce energy losses and prevent unwanted air infiltration at port openings, giving you an energy-efficient and sustainable solution for your facility.
Air curtain drums
For the Terminal air curtain system, the standard sizes for air curtain drums are ⌀315 mm.
For smaller or larger airflows, we offer standard models S. ⌀250, S. ⌀315, and S. ⌀400. We also have circular air curtain drums (C. ⌀250, C. ⌀315, and C. ⌀400) for specific installation requirements, as well as square and rectangular models (F.250, F.315, and F.400) to suit unique conditions. For installations with limited height, such as between a suspended ceiling and a doorway, we can design air curtain drums with a low overall height.

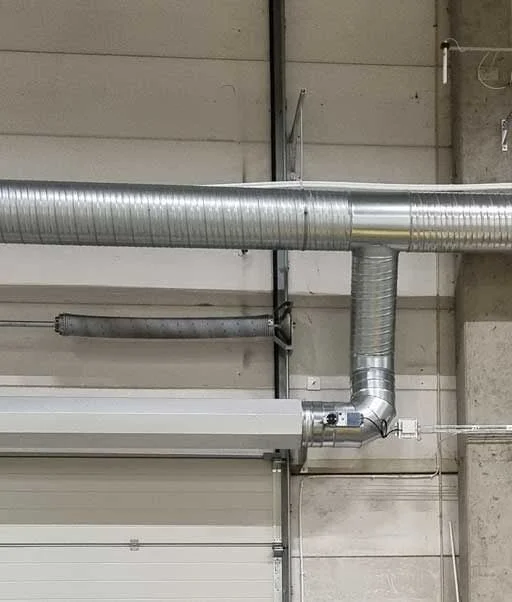

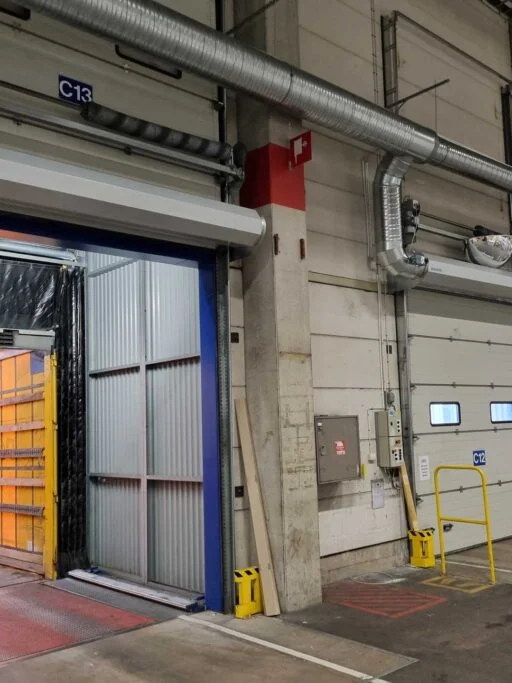

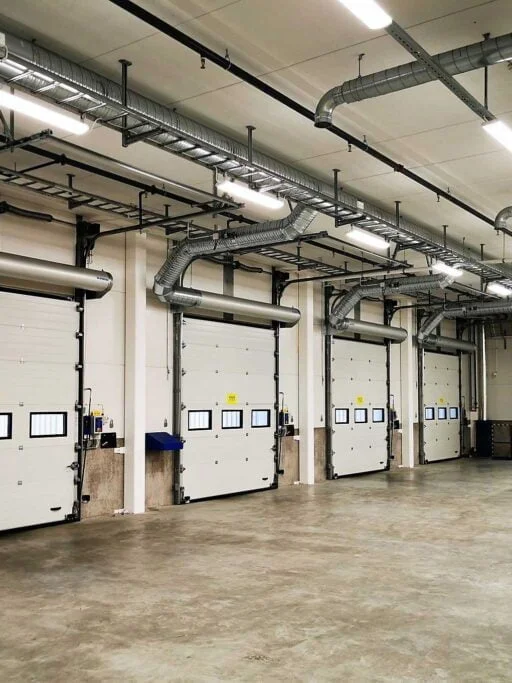

We also offer flexibility in installation. The spiral duct from the fan unit can be connected to any point on the air curtain drum, and the drum can be equipped with an extended nozzle for easy integration with suspended ceilings.
Contact us:
If you have special installation requirements, do not hesitate to contact us. We will gladly help you find the perfect air curtain solution.
Functions and options
- Choose from different sizes of fan units with capacities up to 16,000 m³/h.
- The ASE fan units are insulated.
- Install double vertical or horizontal air curtains, depending on your preferences and needs.
- Knife jet technology provides effective control of the air jet for the best results.

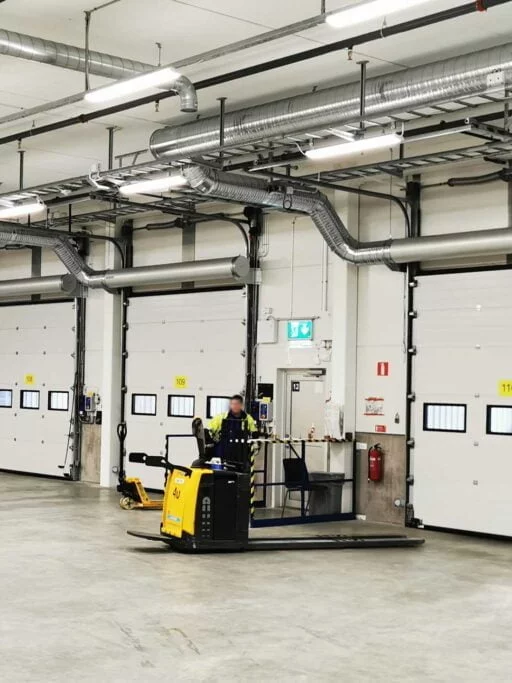

- The fan unit has the capacity to drive from 2 up to 6 doors using our pressure-controlled ERX-control.
- Choose between electric heating, water heating or no heating to tailor the solution to your specific needs.
- The solution with water heating includes an air filter as standard.
- Designed for door heights of up to approximately 4 meters.
- The air curtain drums can also be chosen in any RAL color or in stainless steel. As standard, they are galvanized.
- Customized air curtain drums: Square, rectangular with low construction height, etc. (e.g., for tight spaces above the door).

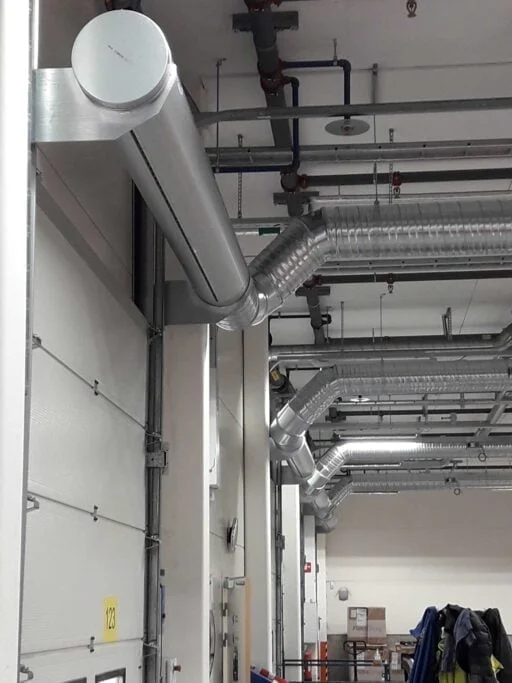

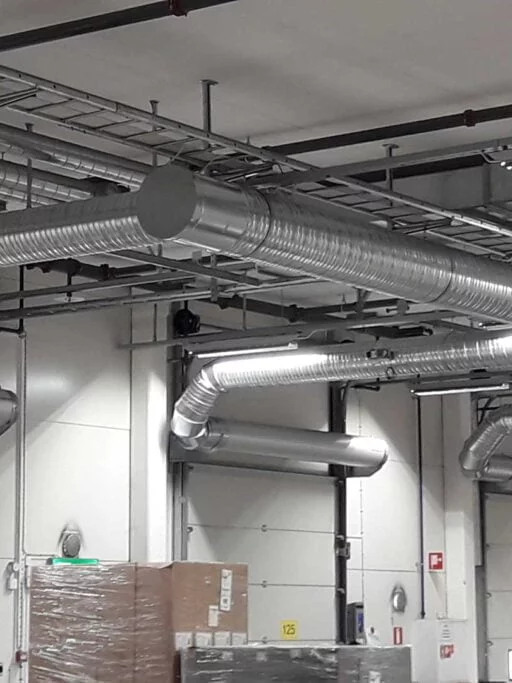

- Circular air curtain drums as an option
Technical Data
| AS 40K-Terminal | AS 45K-Terminal | AS 50K-Terminal | |
|---|---|---|---|
| Installation type | Fanbox with air curtain drums | Fanbox with air curtain drums | Fanbox with air curtain drums |
| Max door height | 4 meter | 4 meter | 4 meter |
| Standard color (Air curtain drum) | Galvanized | Galvanized | Galvanized |
| Standard material (Fanbox) | Galvanized | Galvanized | Galvanized |
| Length OL-curtain drum (**) | Door width + approx. 100mm | Door width + approx. 100mm | Door width + approx. 100mm |
| Length DS-curtain drums (**) | Door height + approx. 50mm | Door height + approx. 50mm | Door height + approx. 50mm |
| Diminsion OL-curtain drum (***) | 315mm | 315mm | 315mm |
| Diminsion DS-curtain drum (***) | 315mm | 315mm | 315mm |
| Length (Fanbox) | See drawing | See drawing | See drawing |
| Height (Fanbox) | See drawing | See drawing | See drawing |
| Depth (Fanbox) | See drawing | See drawing | See drawing |
| Airflow | max 5 500 m³/h | max 7 000 m³/h | max 8 500 m³/h |
| Nozzle | Airstop | Airstop | Airstop |
| Voltage V | 400 | 400 | 400 |
| Power motor kW | 2,3 | 3,5 | 5,2 |
| Motor current A | 3,5 | 5,4 | 8 |
| Frequency Hz | 50 | 50 | 50 |
| IP | 54 | 54 | 54 |
| ASE 500K-2-Terminal | ASE 500K-3-Terminal | ASE 500K-4-Terminal | |
|---|---|---|---|
| Installation type | Fanbox with air curtain drums | Fanbox with air curtain drums | Fanbox with air curtain drums |
| Max door height (*) | 4 meter | 4 meter | 4 meter |
| Standard color (Air curtain drum) | Galvanized | Galvanized | Galvanized |
| Standard material (Fanbox) | Galvanized | Galvanized | Galvanized |
| Length OL-curtain drum (**) | Door width + approx. 100mm | Door width + approx. 100mm | Door width + approx. 100mm |
| Length DS-curtain drums (**) | Door height + approx. 50mm | Door height + approx. 50mm | Door height + approx. 50mm |
| Diminsion OL-curtain drum (***) | 315mm | 315mm | 315mm |
| Diminsion DS-curtain drums (***) | 315mm | 315mm | 315mm |
| Length (Fanbox) | See drawing | See drawing | See drawing |
| Height (Fanbox) | See drawing | See drawing | See drawing |
| Depth (Fanbox) | See drawing | See drawing | See drawing |
| Airflow | max 9 000 m³/h | max 12 000 m³/h | max 16 000 m³/h |
| Nozzle | Airstop | Airstop | Airstop |
| Voltage V | 400 | 400 | 400 |
| Input power motor kW | 7,8 | 11,7 | 15,6 |
| Motor current A | 11,6 | 17,4 | 23,2 |
| Frequency Hz | 50 | 50 | 50 |
| IP | 54 | 54 | 54 |
(*) The possible height of the door depends on its width.
(**) Horizontal air curtain drum = OL and Double standing air curtain drums = DS
(***) Diameter = Connection size of the air curtain drum depending on the number of curtain drums to the same fan and the air volume we need for each door. It is also available in 250 and 400mm size
