Product information
Key features

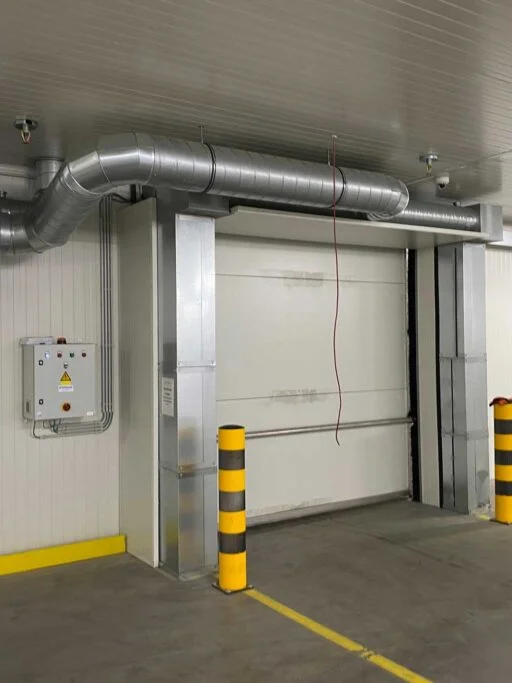

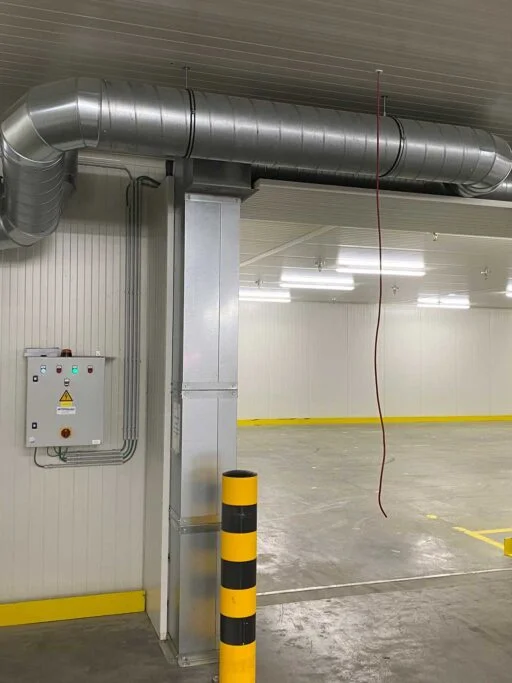

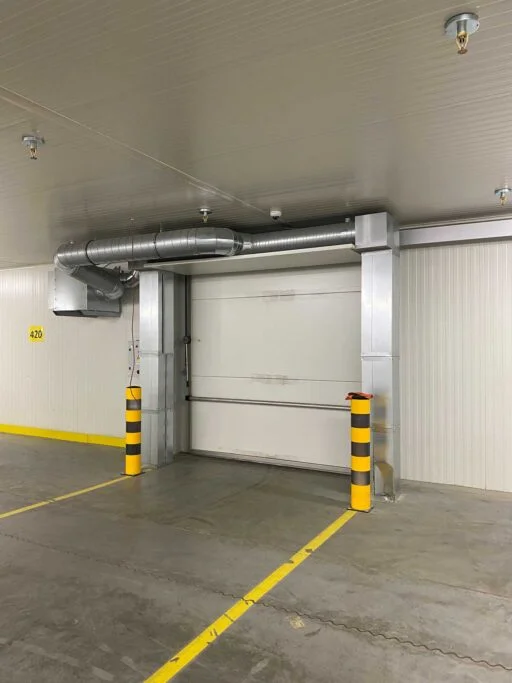

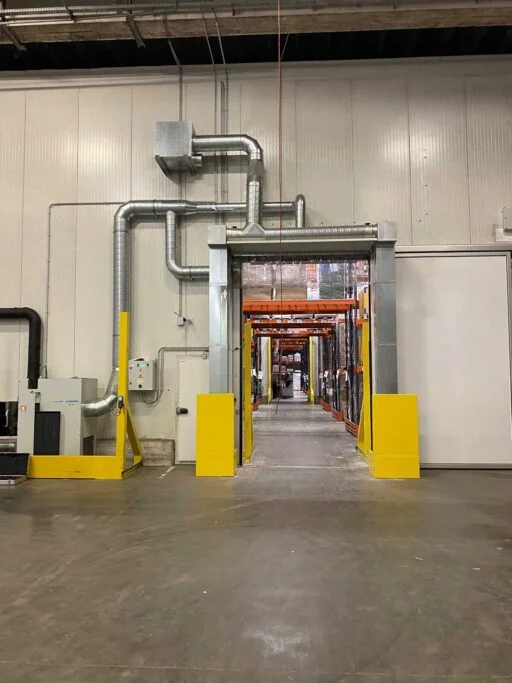

- Specially designed for use at doors between large freezers in combination with large temperature-controlled front rooms.
- Maximum efficiency and low energy consumption.
- Tailored and modular design.
- Also available in hygienic stainless steel.
Powerstream®
Due to the patented separation of functions into separation and insulating air jet, the energy requirement is reduced to a minimum. As standard, this basic system is installed on the freezer side. In opposite to the typical Masterveil approach, the tailormade length is reached by combining standard modules. The blow-out modules are positioned to the left and right of the door. Depending on requirements, the insulation air layer is conditioned with an electric heating coil, a glycol coil or an active dehumidifier. Powerstream DSB comfort is being installed on the warm side and adapted with an ML1350 insulation line.
More features
- The entire system is controlled via a control cabinet and can be connected directly to the building management system.
- The fans are based on EC technology in accordance with the latest ErP regulations.
- They have an adjustable operating point, so that a zero point is demonstrated in each case as proof of correct function and screening.
- The specially developed nozzles have a very smooth surface to avoid the smallest turbulence in the air jet.
Downloads
Accessories
ERX-EM-FM
For controlling electrically heated air curtains.
ERX-WM-FM
For controlling water-heated air curtains.
Collision protection for POWERSTREAM
POWERSTREAM DSB can be completed with specially developed collision protection to avoid damage.
Electrical insulation line
POWERSTREAM DSB and Electrical insulation line Optimisation with the help of an extra electrical resistance.
Glycol insulation line
POWERSTREAM DSB and Glycol insulation line Optimisation to a HYBRID system through a combination with Glycol heating.
Ice dry insulation line
POWERSTREAM DSB and Ice dry insulation line Optimisation by combining with active dehumidification, to have the maximal effect.
ML1350 insulation line
ML1350 insulation line Here we combine the Powerstream, placed on the warm side, with active dehumidification with low dewpoint.
Triple Jet
Triple Jet as extra action in the control of humidityload.
