MVP-S 999 – Trucks

No heat

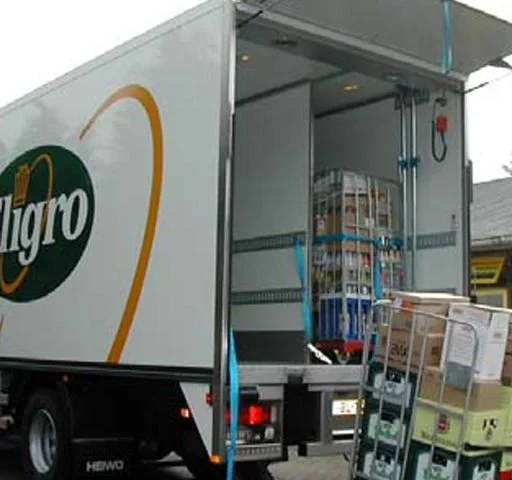

Masterveil MVP-S air curtain installed inside a truck.
Close-up of Masterveil MVP-S air curtain installed inside a truck

Effective coldchain temperature protection solution for trucks

MVP-S 999, an air curtain for trucks, the air curtain has a minimal construction height of only 100 mm. The curtain is made to retain the cold inside the cargo areas of trucks and helps to maintain a constant temperature without compromising the load height. Ensure an uninterrupted cold chain with this compact and efficient air curtain.

Product information

Advantages

A highly efficient air curtain is created by a fan that propels air through our advanced knife jet nozzle at high speed. This nozzle separates the temperature zone in the cargo space from the surrounding air. Cargo handling can thus be conducted smoothly without obstacles, eliminating the need for obstructive plastic strips or curtains that would block visibility.

  • Highly effective temperature protection for refrigerated trucks.
  • Space-saving solution.
  • Exceptionally high efficiency.
  • Adjustable for opening widths between 1000–2600 mm.
  • Promotes efficient cargo handling.
  • Creates an improved work environment without obstacles.

Technical Data

MVP-S 999-1MVP-S 999-2
Type of installationHorizontalHorizontal
Standard colorAluminumAluminum
Length1000-1300mm2000-2600mm
Height100mm100mm
Depth350mm350mm
Air flow600 m³/h1200 m³/h
NozzleAirstopAirstop
Voltage V24VDC24VDC
Power motor kW0,1060,212
Motor current A510
IP4242
