ASE-K air curtain – Product information
Versatile installation and seamless operation of air curtains

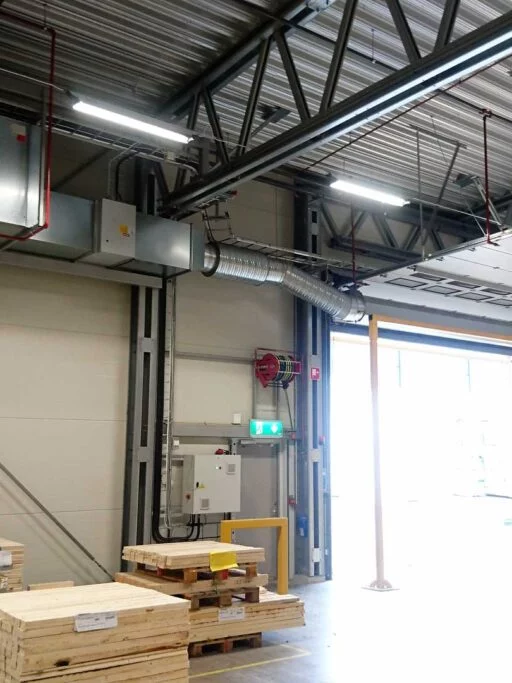

The air curtain can be installed visibly upright, horizontally or concealed in the wall or ceiling if equipped with extended nozzles. With ASE K, you can operate multiple air curtains simultaneously. The unit is connected to one or more air curtains, and the curtain length can be easily adjusted to the width and height of the opening. The innovative air curtains are equipped with our unique Airstop nozzle with knife jet technology. The air curtain is delivered with or without heating, and the power can be customized according to the conditions on-site.
Air curtain drums

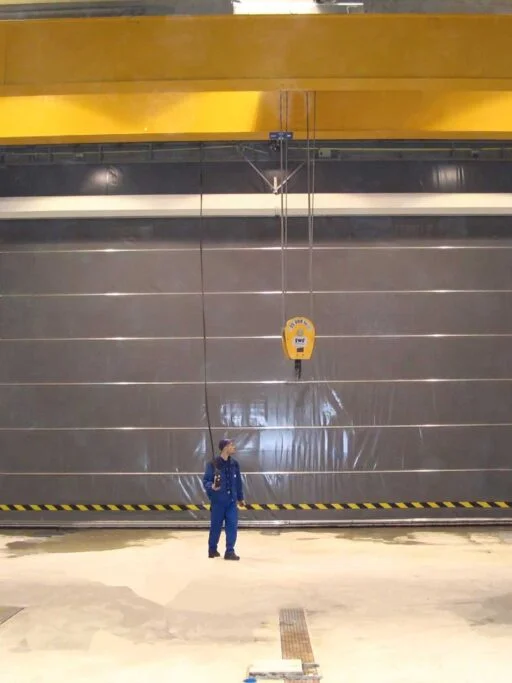

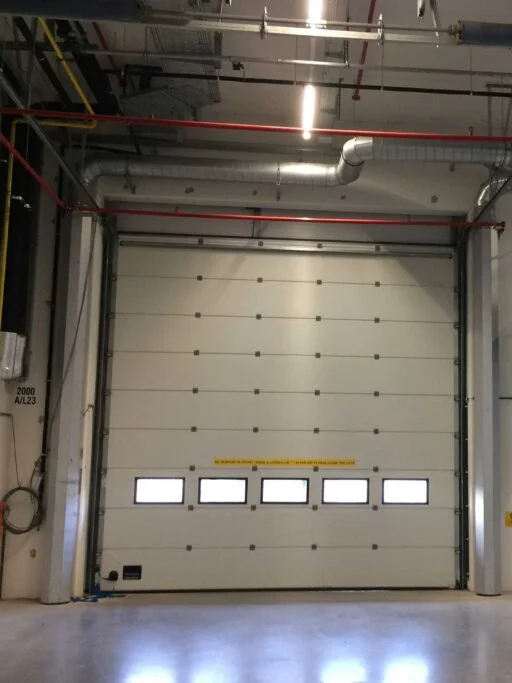

ASE-K Large industrial doors are available with air curtain drums from ⌀400 mm for overhead mounting and from ⌀315 mm for double standing air curtain drums.

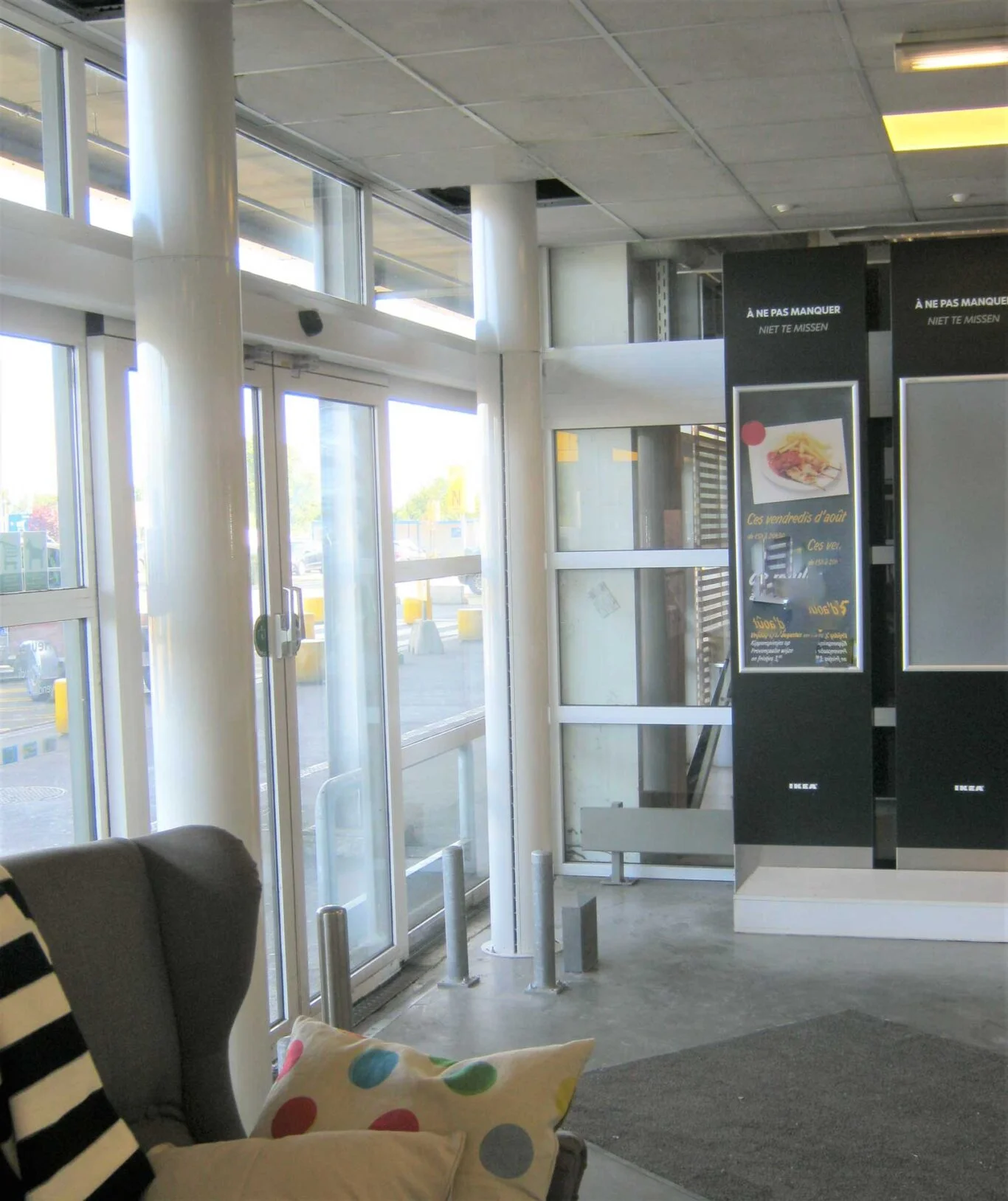

For smaller or larger airflows, we offer standard air curtains S.⌀315, and S.⌀400. We also have circular air curtain drums (C.⌀315, and C.⌀400) for specific installation requirements, as well as square and rectangular models (F.315, and F.400) to suit unique conditions. For installations with limited height, such as between a suspended ceiling and a doorway, we can design air curtain drums with a low overall height.

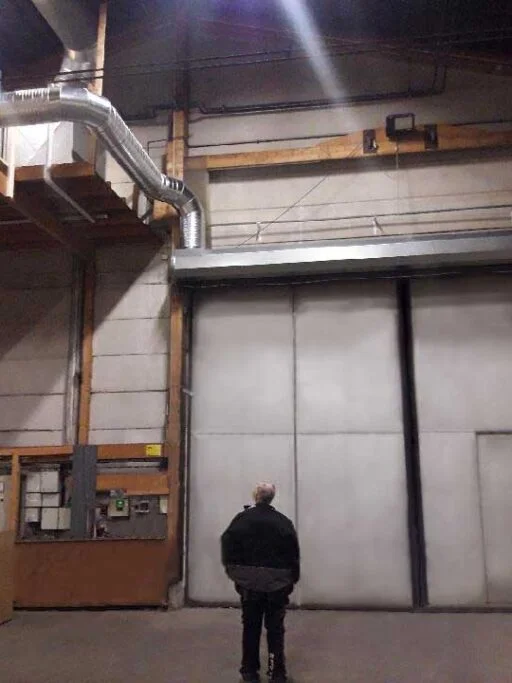

We also offer flexibility in installation. The spiral duct from the fan unit can be connected to any point on the air curtain drum, and the drum can be equipped with an extended nozzle for easy integration with suspended ceilings.
Contact us:
if you have special installation requirements, do not hesitate to contact us. We will gladly help you find the perfect air curtain solution.
Endless customization options for our air curtains
- Choose from two different sizes of fan units, with capacities ranging from 10.000 m³/h up to 13,000 m³/h.
- The fan unit is insulated for optimal energy efficiency.
- Install upright or overhead air curtains, depending on your preferences and needs.
- The standalone fan unit delivers high performance to ensure efficiency and reliability.
- The advanced knife jet technology provides effective control of the air jet for the best results.
- The unit has the capacity to operate one or more air curtains, providing increased flexibility.

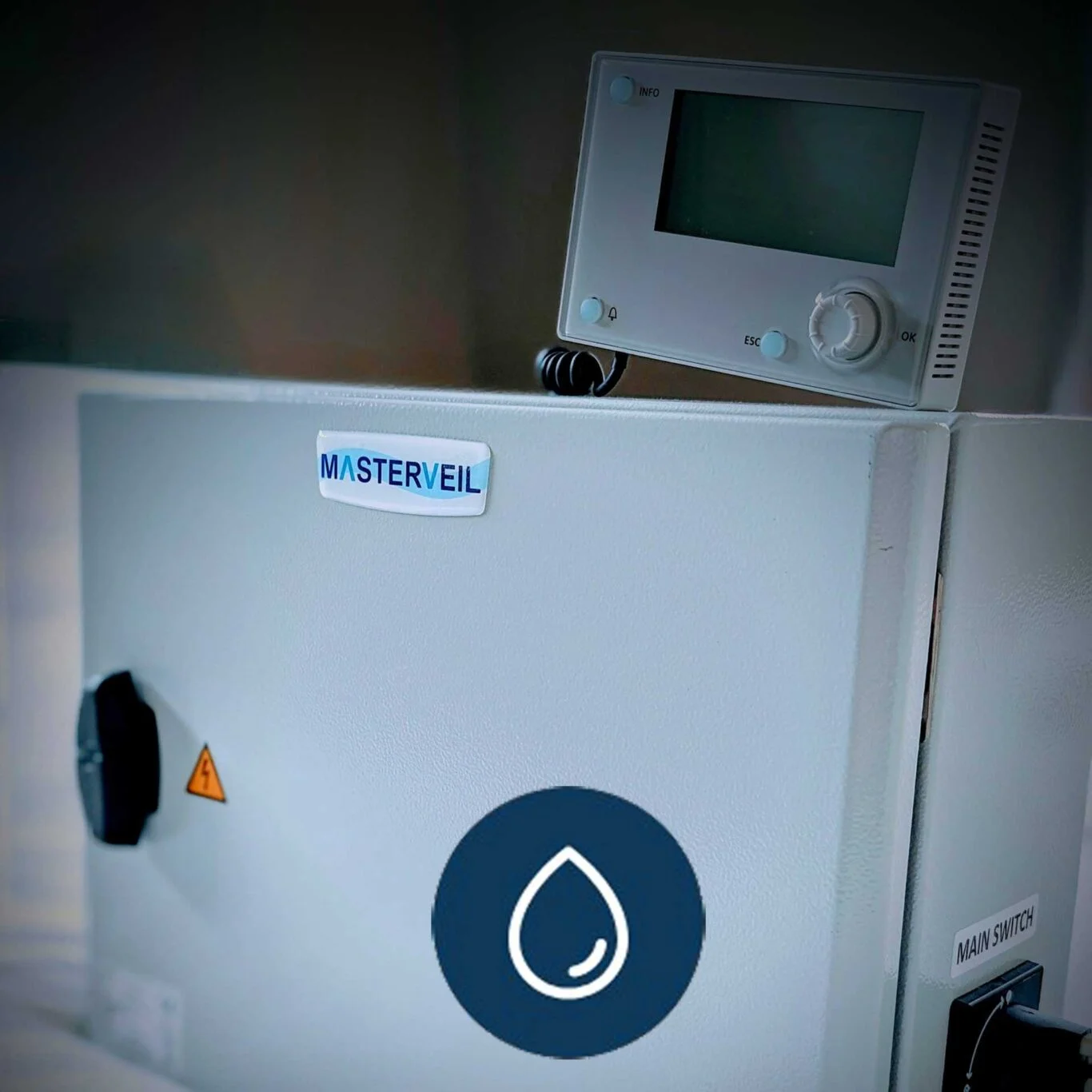

- Choose between electric heating, water heating or without heating to tailor the solution to your specific requirements.
- The solution with water heating includes air filters for optimal air quality.
- Suitable for door heights of up to approximately 6 meters.
- Available in any RAL color or in stainless steel finish.
With the air curtain ASE K, you get a tailored and powerful solution to optimize climate control at all door openings and entrances. Contact us today to discuss how we can customize an air curtain to your exact needs and enhance efficiency in your business.
Technical Data – ASE K air curtain
| ASE 500K-3 air curtain | ASE 500K-4 air curtain | |
|---|---|---|
| Installation type | Fanbox with air curtain drum | Fanbox with air curtain drum |
| Max door height (*) | 6 meter | 6 meter |
| Standard color (Air curtain drum) | RAL 9010 | RAL 9010 |
| Standard material (Fanbox) | Galvanized | Galvanized |
| Length OL – air curtain drum (**) | Door width + approx. 100mm | Door width + approx. 100mm |
| Length DS – air curtain drums (**) | Door height + approx. 50mm | Door height + approx. 50mm |
| Diminsion OL – air curtain drum (***) | 400mm | 400mm |
| Diminsion DS – air curtain drums (***) | 315mm | 400mm |
| Length (Fanbox) | See drawing | See drawing |
| Height (Fanbox) | See drawing | See drawing |
| Depth (Fanbox) | See drawing | See drawing |
| Airflow | 10 000 m³/h | 13 000 m³/h |
| Nozzle | Airstop | Airstop |
| Voltage V | 400 | 400 |
| Power motor kW | 11,7 | 15,6 |
| Motor current A | 17,4 | 23,2 |
| Frequency Hz | 50 | 50 |
| IP | 54 | 54 |
(**) Horizontal air curtain drum = OL and Double standing air curtain drums = DS
(***) Diameter = Connection size of the air curtain drum
Downloads
Product sheet
904.21 KB
Drawing ASE-500K-3 No heat
1.92 MB
Drawing ASE-500K-3 Water heat
1.93 MB
Drawing ASE 500K-3 Electric heat
2.01 MB
Drawing ASE 500K-4 No heat
2.04 MB
Drawing ASE 500K-4 Water heat
2.05 MB
Drawing ASE 500K-4 Electric heat
2.15 MB
Water battery simulation
514.79 KB
Accessories list for AS-K & ASE-K
561.21 KB
Masterveil Air Curtain System Installation Guide
84.06 KB
