AC 1000 – Truck dockings

No heat

EC Fan

A Masterveil AC-1000 Airstop air curtain installed above a overhead sliding door at a warehouse.

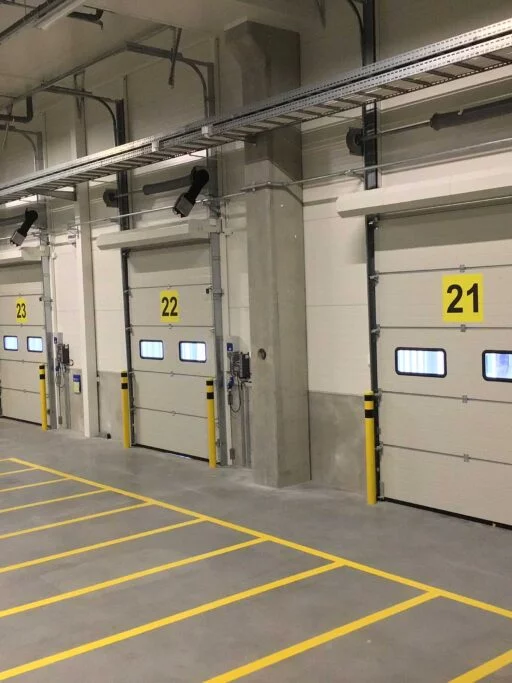

Five Masterveil AC-1000 Airstop air curtains installed above five industrial doors.

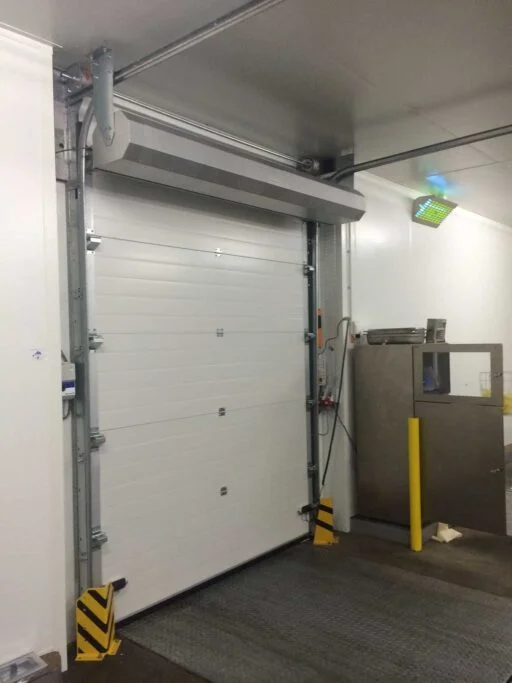

Masterveil AC-1000 Airstop air curtain installed above an industrial door.

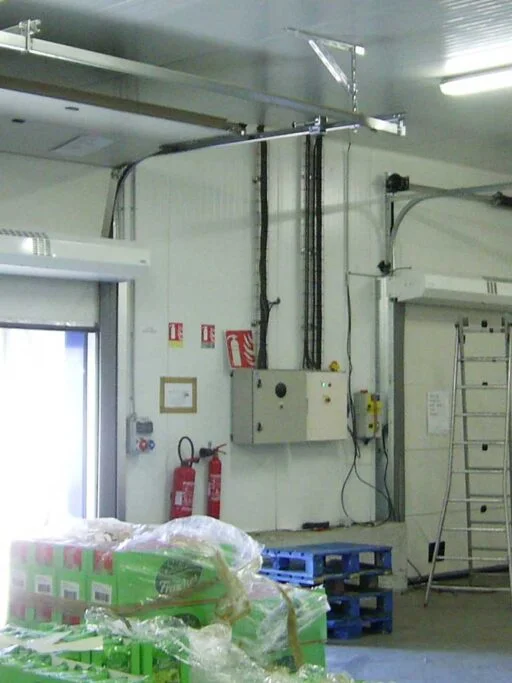

Two Masterveil AC-1000 Air Curtains Installed Above Two Side-by-Side Truck Docking Doors

Air curtain AC 1000: optimize efficiency and safety at Truck Dockings

Welcome to the cutting edge of advanced air curtain technology with the AC 1000, the premium no-heat air curtain meticulously designed to optimize the efficiency and safety at truck docking. With its state-of-the-art features, AC 1000 ensures superior climate control and enhanced security for your loading docks.

Designed specifically for truck docking, AC 1000 offers unparalleled performance and versatility. Equipped with our Airstop nozzle featuring knife jet technology, this air curtain efficiently regulates indoor temperatures while effectively blocking outside elements.

Whether it’s maintaining a consistent temperature, preventing dust and debris ingress, or enhancing safety by reducing the risk of accidents, AC 1000 delivers exceptional results.

Installation of the AC 1000 is simple and hassle-free, and with several model options available, you can customize the air curtain to suit the unique requirements of your truck docking environment.

Request a quote

Product information

Key Features

  • Tailored for truck dockings to optimize efficiency and safety
  • Airstop nozzle with knife jet technology for superior performance
  • Easy installation and with multiple model options
  • Enhanced climate control and security for loading docks
  • Suitable for door heights of up to approximately 3,2 meters

Choose AC 1000 for unmatched air curtain technology that guarantees optimal performance and safety at truck dockings.

Contact us today to explore customized solutions tailored to your specific needs and take your loading dock operations to new heights!

Technical Data

AC 1000-1.14AC 1000-2.14AC 1000-3.14AC 1000-4.14AC 1000-5.14AC 1000-6.14
Installation typeHorizontalHorizontalHorizontalHorizontalHorizontalHorizontal
Max door height (*)3,2 meter3,2 meter3,2 meter3,2 meter3,2 meter3,2 meter
Standard colorRAL 9010RAL 9010RAL 9010RAL 9010RAL 9010RAL 9010
Length OL-air curtain (**)Door width + approx. 100mmDoor width + approx. 100mmDoor width + approx. 100mmDoor width + approx. 100mmDoor width + approx. 100mmDoor width + approx. 100mm
Length (From)900mm –1100mm –1700mm –2200mm –2700mm –3300mm –
Height 260mm260mm260mm260mm260mm260mm
Depth 340mm340mm340mm340mm340mm340mm
Airflow650 m³/h1300 m³/h1950 m³/h2500 m³/h3000 m³/h3600 m³/h
NozzleAirstopAirstopAirstopAirstopAirstopAirstop
Voltage V230230230230230230
Power motor kW0,1460,2920,4380,5840,7300,876
Motor current A1,142,283,424,565,76,84
Frequency Hz505050505050
IP4X4X4X4X4X4X
(*) The possible height of the door depends on its width.
(**) Horizontal air curtain = OL and Double standing air curtains = DS

Downloads

Product sheet

960.83 KB

Drawing AC 1000

219.53 KB

Accessories

PEC-KE

Control system for unheated air curtains with adjustable speed

Related products

Explanation of symbols

No heat

Water heat

Electric heat

EC Fan

Dehumidifier

Masterveil AC-1000 air curtain over the entrance to a large fruit and vegetable section in a grocery store

No heat

EC Fan

AC 1000 - Cold rooms

Experience advanced technology with AC 1000, a compact air curtain specially designed for cold rooms and chilled areas in stores.

Read more
Masterveil AS-K horizontal Airstop air curtains at industrial door

No heat

Water heat

Electric heat

EC Fan

AS-K - Logistics & Industrial doors

Optimal air curtain solutions for small and medium-sized doors, with various performance options.

Read more
Masterveil ASE-K Airstop Horizontal Air Curtain Installed Above a Large Industrial High-Speed Door at a Building Supplies Store.

No heat

Water heat

Electric heat

EC Fan

ASE-K - Industrial doors

With the Air Curtain ASE K, you get a tailored and powerful solution to optimize climate control at Industrial doors

Read more

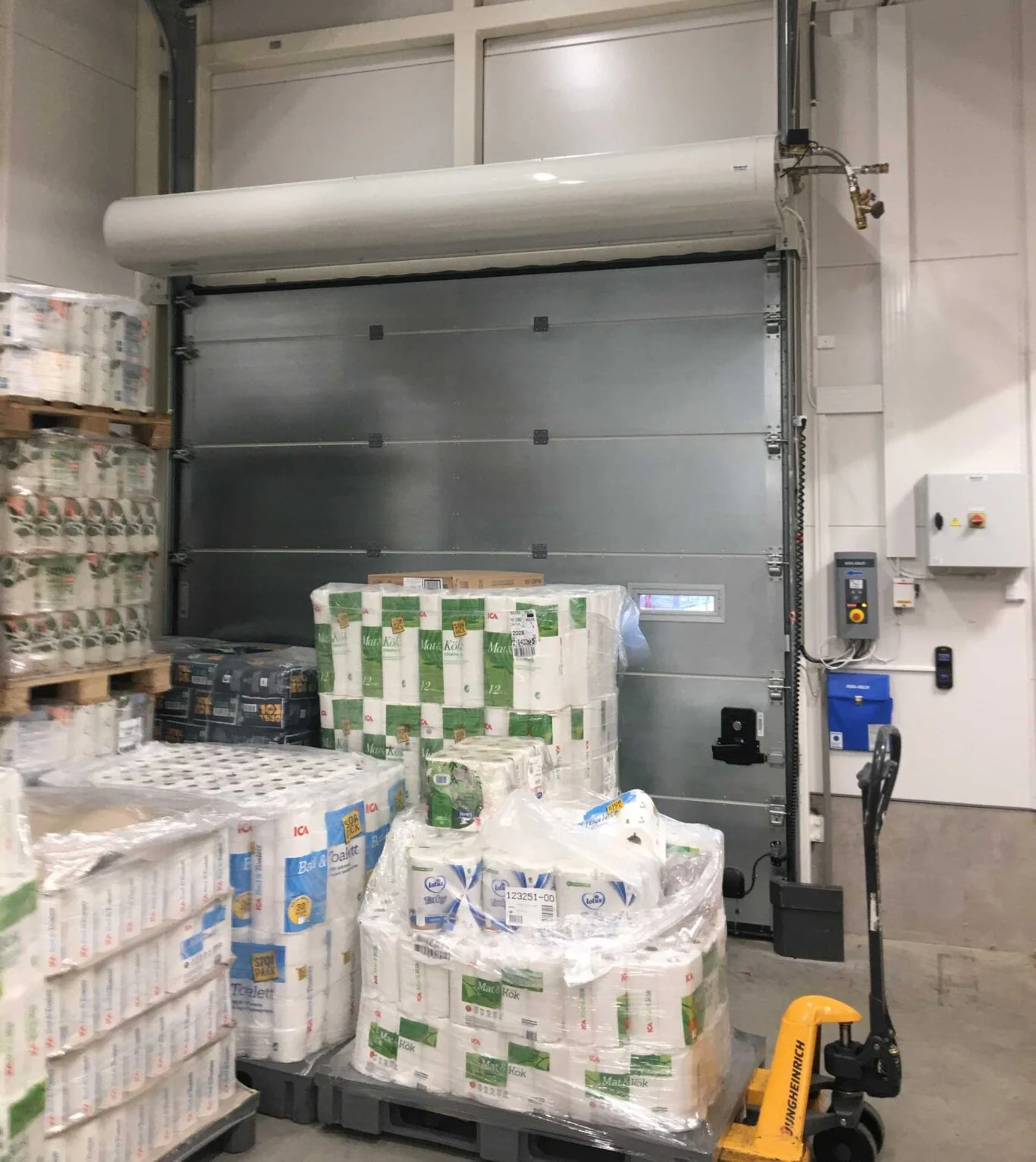

Air curtain Masterveil Compact 330 front view at industrial door.

Water heat

EC Fan

COMPACT 330 - Industrial doors

A high-performance, elegant overhead air curtain, perfect for efficient climate control and energy efficiency.

Read more
Masterveil MTC Horizontal Air Curtain Installed Above a High-Speed Door in an Industrial Facility

Water heat

EC Fan

MTC - Industrial doors

This air curtain for industrial doors has been developed with a strong focus on providing high flexibility through its compact dimensions. What makes MTC even more adaptable is the option to have an airintake from the front, top, or bottom.

Read more

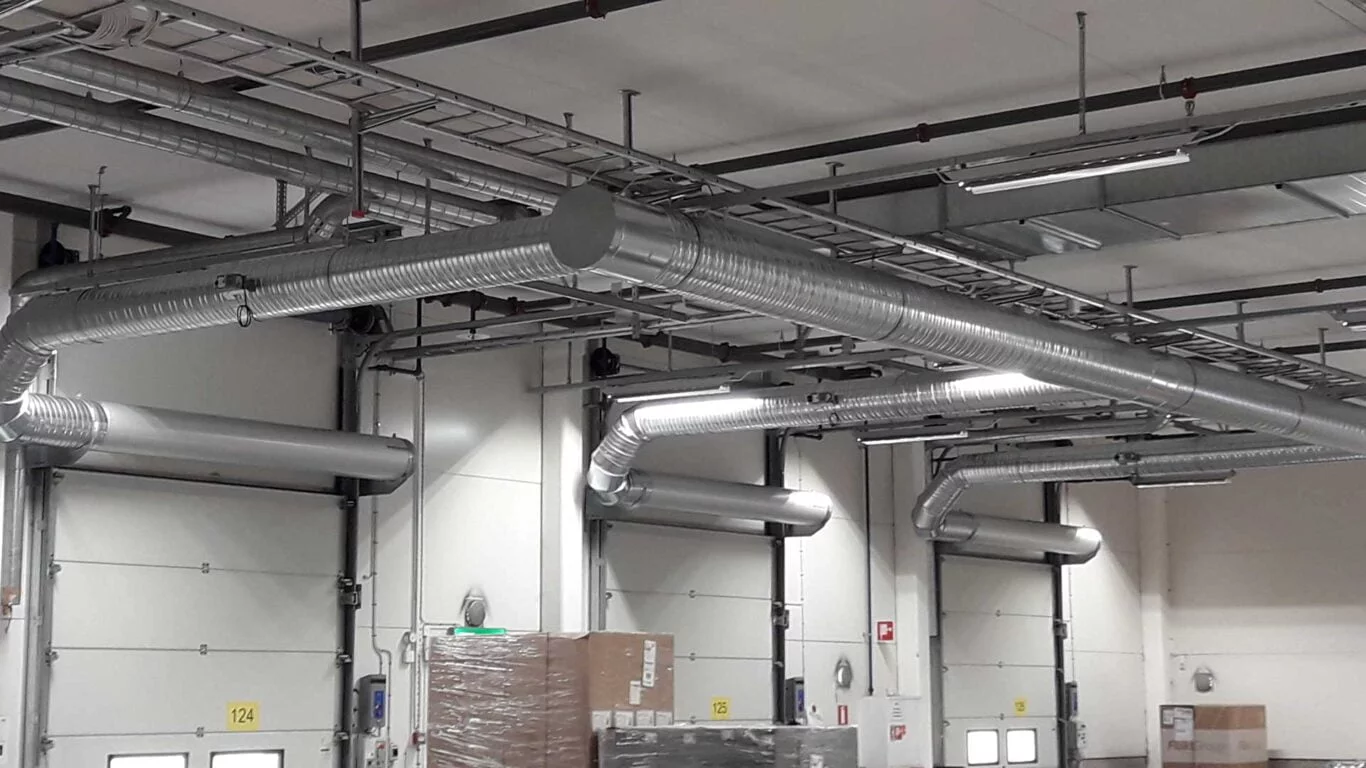

Masterveil Terminal Circular Air Curtains installed at multiple industrial doors
